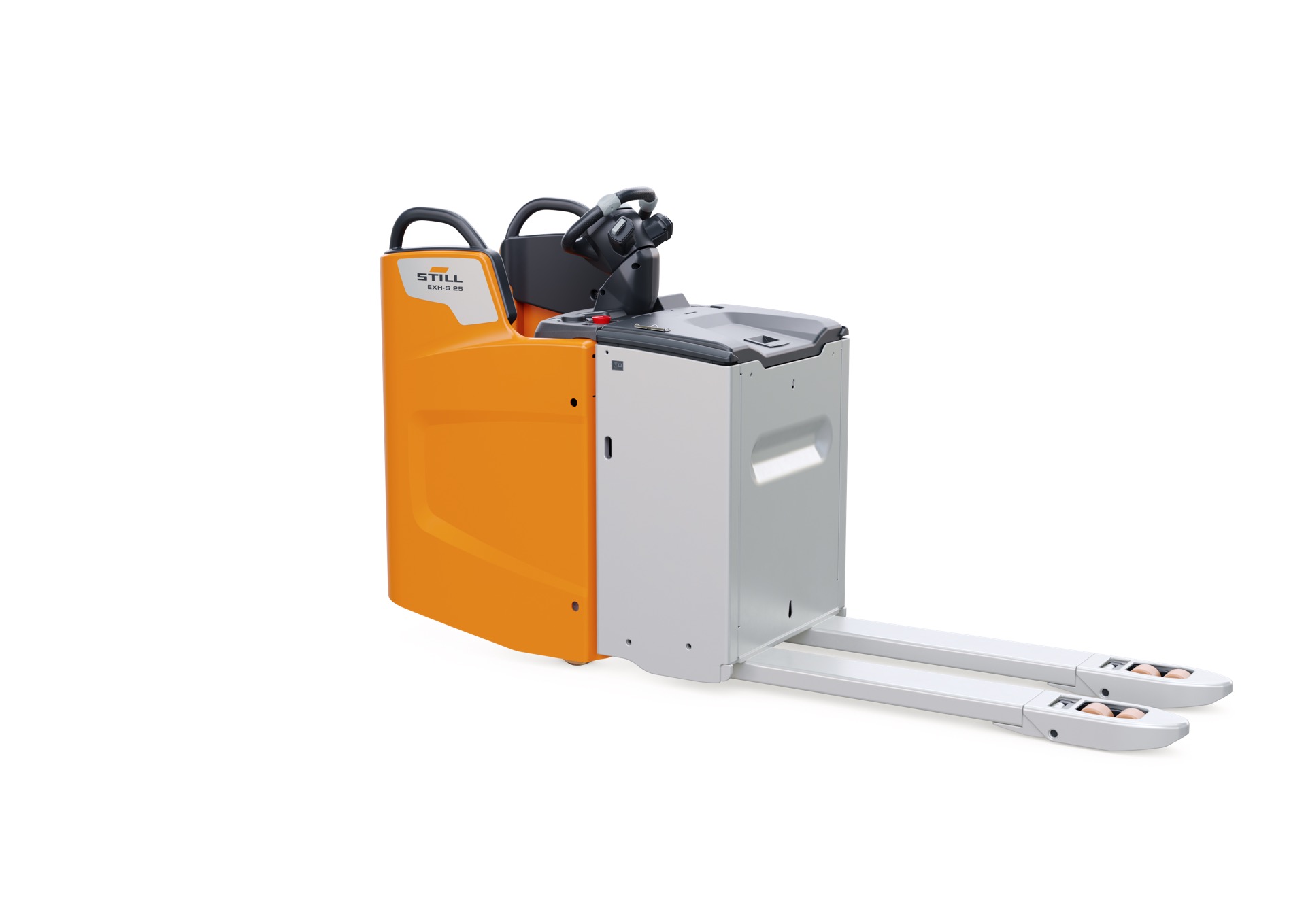

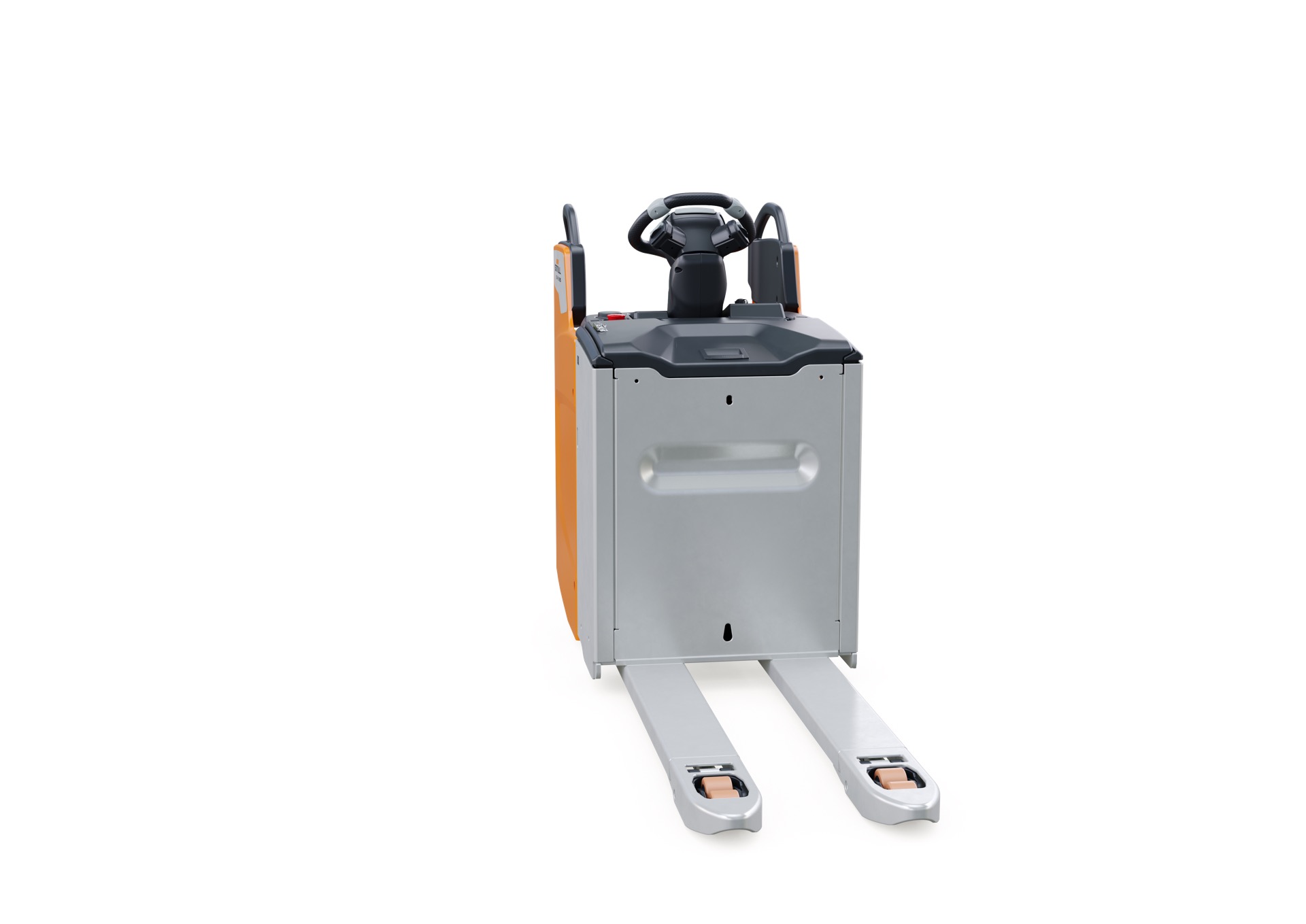

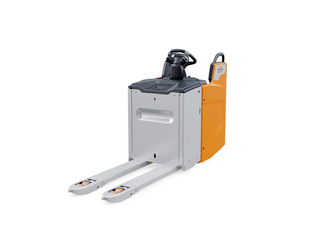

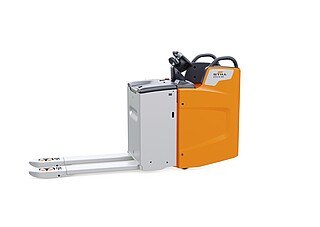

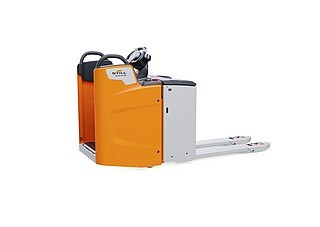

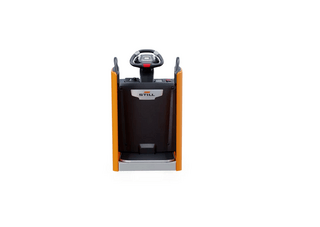

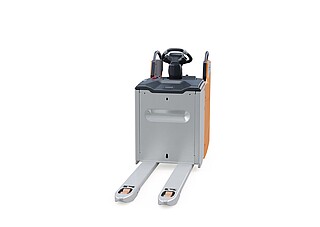

Low lift pallet truck EXH-S 20-25

Speeds things up.
Safely.

  • Load capacity 2500 kg
  • Rated lift 125 mm
  • Speed 14 km/h

Efficient performance, safe and convenient operation, reliable flexibility

The EXH-S pallet truck combines all of these features to perfection. With a maximum lifting capacity of 2,500 kg, a swift top speed of 14 km/h and the ability to move two pallets at once thanks to the extra-long forks, the EXH-S features unrivalled performance. Thanks to the intuitive operating concept, you can rely on the height-adjustable STILL Easy Drive steering wheel with integrated display and rocker switches at all times.

This feature ensures that left- and right-handed operators always have full control of all functions, without having to change grip. The optional, individually adjustable, air-cushioned stand-on platform also provides optimal protection for the operator’s back, even in the toughest applications. Speaking of applications, the EXH-S equips you for any storage situation and ensures you benefit from flexibility when it comes to configuration variants. All truck variants have an ultra-robust chassis. This provides extra protection for demanding ramp applications, for example. Those who choose the lithium-ion variant as an option can interim charge the battery at any time and benefit from maximum flexibility.

NEW
Non-binding offer
RENTAL
Non-binding rental offer
USED
Our used trucks offer

EXH-S 20-25 اطلب

املأ الاستمارة
.سنعود إليك في أقرب وقت ممكن

تحية*
This site is protected by Friendly Captcha and the Friendly Captcha Privacy Policy applies.

High and flexible handling capacity

Swift, safe movement on ramps: high-powered drive and lift motor and 5-wheel chassis with sprung support wheels

Safe handling in confined spaces

Fast and safe cornering: Curve Speed Control automatically adapts the speed to the steering angle when cornering

Safe handling in confined spaces →

Safe handling in confined spaces

thanks to a chassis that is only 720 mm wide

Intuitive operating concept

Height-adjustable STILL Easy Drive steering wheel provides easy-access control without having to change


The EXH-S 20-25 in detail

The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency

Simply easy

Smooth steering and intuitive operation
of all functions for left- and right-handed operators with STILL Easy Drive steering wheel

Easy access and optimal protection
for the operator’s back and joints: low access point and adjustable, air-cushioned stand-on platform with integrated compressor available as an option

Optional built-in charger
for decentralised charging at every power socket

Optimal utilisation of storage space:
compact dimensions and high manoeuvrability facilitate narrow working aisles

A high level of comfort and excellent driving on any surface: the stand-on platform is mechanically or pneumatically suspended, depending on the intended use

Simply powerful

Fast goods handling:
up to 2,500 kg lifting capacity and an optional maximum speed of 14 km/h for the EXH-S 25

Built for continuous operation:
reliable and low-maintenance drive

Swift, safe movement on ramps: high-powered drive and lift motor and 5-wheel chassis with sprung support wheels

Instant charging:
lithium-ion model achieves 50 percent charge level in only 30 minutes and is fully charged in only 90 minutes

Designed to handle even the toughest applications:
robust, durable chassis made from solid steel

Simply safe

Simply work with precision thanks to unobstructed field of vision:
free view mast and centrally positioned tiller

Accidental roll-back impossible:
automatic stop function even on ramps

Fast and safe cornering:
Curve Speed Control automatically adapts speed to the steering angle when cornering

Only moves off once the operator is standing safely:
optional foot sensor determines whether the feet are within the truck’s contour (EXH-S)

Safe load handling in confined spaces
thanks to compact dimensions

Simply flexible

Suitable driving programmes for any application,
from maximum handling power to optimal efficiency: ECO, BOOST or Blue-Q

Ready for use at all times:
battery capacities up to 500 Ah and optional STILL lithium-ion battery for round-the-clock availability

Decentralised and flexible charging
at any power socket with the optional built-in charger

Flexibly configurable driver’s cab for various main applications, from frequent ramp driving through to long transport distances: rear access, side access or backrest on the EXH-S

Simply connected

Versatile, flexible access control
with FleetManager 4.x

Fast service analysis
and parametrisation of settings thanks to CAN bus interface

Easy integration into material flow management system
thanks to mms provision

STILL Li-Ion Technology inside

The perfectly harmonised power system for reducing operating costs and increased truck availability.

More about STILL Li-Ion Technology

Applications

Optimum view

of the fork tips allows a high and safe handling performance

Increased operational hours

thanks to fast interim charging with optional STILL Li-ion technology

Whisper quite driving

with 62dB

Rear access

for extra safety when loading and unloading, and when driving up ramps

Side access

for longer transport distances

Backrest

for frequent order picking, also optionally for all models an individually adjustable, air cushioned stand-on platform

Powerful on ramps

slanted chassis design enables powerful driving on ramps

EXH-S 20-25 اطلب

املأ الاستمارة
.سنعود إليك في أقرب وقت ممكن

تحية*
This site is protected by Friendly Captcha and the Friendly Captcha Privacy Policy applies.

Media Centre

{{ filteredVideos.length }} Videos

Model Overview

Model
Maximum capacity (kg)
Maximum lift height (mm)
Travel speed (km/h)
Battery voltage (V)
EXH-S 20 / Li-Ion 2.000 125 12.0 24
EXH-S 25 / Li-Ion 2.500 125 14.0 24

Downloads

The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
